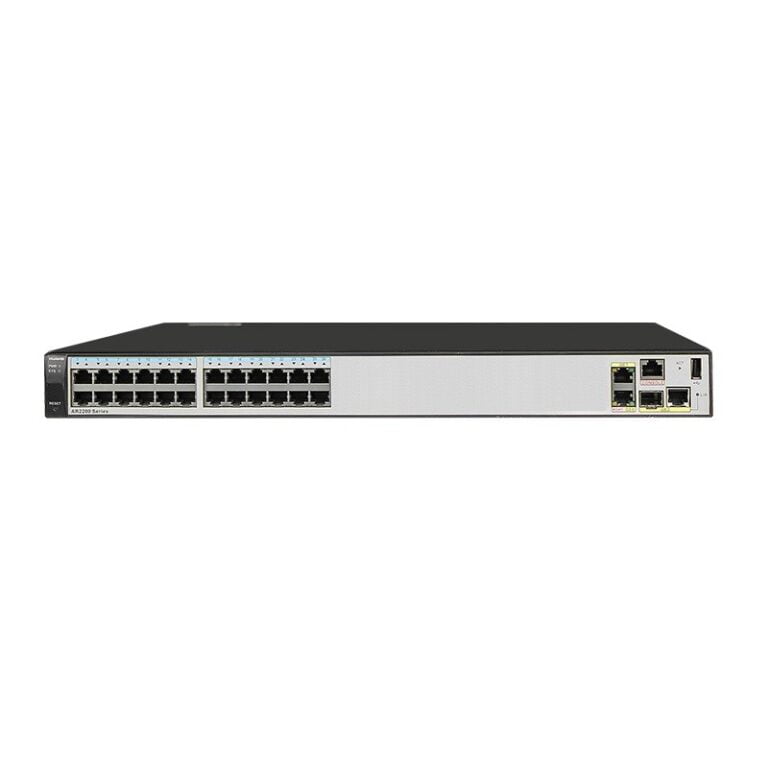

Huawei AR2200 Series Enterprise Routers
Dopasowane dla SOHO połączenie wysokiej wydajności i dużych możliwości
Opis produktu Huawei AR2200 Series Enterprise Routers
- AR2200s include built-in firewalls; provide IPS and URL filtering; 802.1x, MAC, and portal authentication; and support IPSec VPN, EVPN, DSVPN, and Smart VPN secure access
- Crisp, clear voice communications are assured by built-in BPX, SIP server, and SIP gateway functions; interfaces are provided for connection to third-party NGN/IMS/PBX terminals
- Switching Router Units (SRUs) on AR2240 main control boards are configurable and upgradable for added flexibility
- Millisecond fault detection and link backup ensure high availability; line cards are hot-swappable without disrupting service
- Provides multiple 3G/LTE modes; supports high-speed wireless ACs and multiple APs; integrated wired and wireless access
Scalable and secure, unified voice and data communications for medium-sized enterprise headquarters and branch offices. Gbit/s routing and switching are integrated into a single device, reducing TCO.
Native WLAN support combined with non-blocking switching fabric architecture provides resilient multimedia communications with comprehensive security features — including built-in firewall and continually updated mechanisms to defend against malicious attacks.
The AR2200’s modular design lets you configure and upgrade ports as needed — from Digital Signal Processor (DSP) support to Smart Interface Cards (SICs) to customize speeds and interfaces.
Specyfikacja techniczna
| Specifications | AR2201-48FE | AR2204-27GE/ AR2204-27GE-P | AR2204-51GE-P | AR2204E | AR2220 | AR2220E | AR2240C | AR2240 |
| WAN Speed with Services*** | 200 Mbit/s | 200 Mbit/s | 200 Mbit/s | 200 Mbit/s | 400 Mbit/s | 800 Mbit/s | 1 Gbit/s | 1 Gbit/s (with SRU40)
2 Gbit/s (with SRU80) 1 Gbit/s (with SRU100E) 4.5 Gbit/s (with SRU200) |
| Fixed WAN Ports | 2 x GE (1 x Combo) | 3 x GE (1 x Combo) | 3 x GE (1 x Combo) | 3 x GE (1 x combo port) | 3 x GE (1 x Combo) | 3 x GE (1 x Combo) | 4 x GE + 4 x GE SFP +2 x GE Combo | SRU40: 3 x GE (2 x Combo)
SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo+ 2 x GE SFP SRU200: 4 x GE Combo+ 2 x 10 GE SFP+ |
| Fixed LAN Ports | 48 x FE (FE0, FE47 can be configured as WAN interfaces) | 24 x GE/24 x GE (8 x GE ports support PoE) | 48 x GE (8 x GE ports support PoE) | – | – | – | – | – |
| SIC Slots | 0 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| WSIC Slots (default/max.) | 0 | 0 | 0 | 0/2 | 2/4 | 2/4 | 2/4 | 2/4 |
| XSIC Slots (default/max.) | 0 | 0 | 0 | 0 | 0/2 | 0/2 | 2/4 | 2/4 |
| Wireless Controller | Wireless Controller is integrated in software | |||||||
| Maintenance | U-disk deployment supported | All interface cards support hot-swapping
U-disk deployment supported |
All interface cards support hot-swapping U-disk deployment supported |
All interface cards support hot-swapping
U-disk deployment supported |
All interface cards support hot-swapping U-disk deployment supported |
All interface cards support hot-swapping U-disk deployment supported |
All interface cards support hot-swapping U-disk deployment supported |
All interface cards support hot-swapping U-disk deployment supported |
| Memory | 512 MB | 512 MB | 512 MB | 512 MB | 2 GB | 1 GB | 2 GB | 2 GB/4 GB |
| Flash (default/max.) |
512 MB | 512 MB | 512 MB | 512 MB | 2 GB/8 GB | 512 MB/4 GB | 2 GB/8 GB | 2 GB/8 GB |
| Power Supply | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz |
| Redundant Power Supply | External RPS | Internal: AC | Internal: AC | Internal: AC, DC | – | External RPS | Internal: AC, DC | Internal: AC, DC |
| Rack Height | 1 RU | 1 RU | 1 RU | 1 RU | 1 RU | 1 RU | 2 RU | 2 RU |
| Dimensions (H x W x D) | 44.5 mm x 442 mm x 310 mm | 44.5 mm x 442 mm x 420 mm | 44.5 mm x 442 mm x 420 mm | 44.5 mm x 442 mm x 420 mm | 44.5 mm x 442 mm x 420 mm | 44.5 mm x 442 mm x 420 mm | 88.1 mm x 442 mm x 470 mm | 88.1 mm x 442 mm x 470 mm |
***Service performance depending on specific feature configuration.
