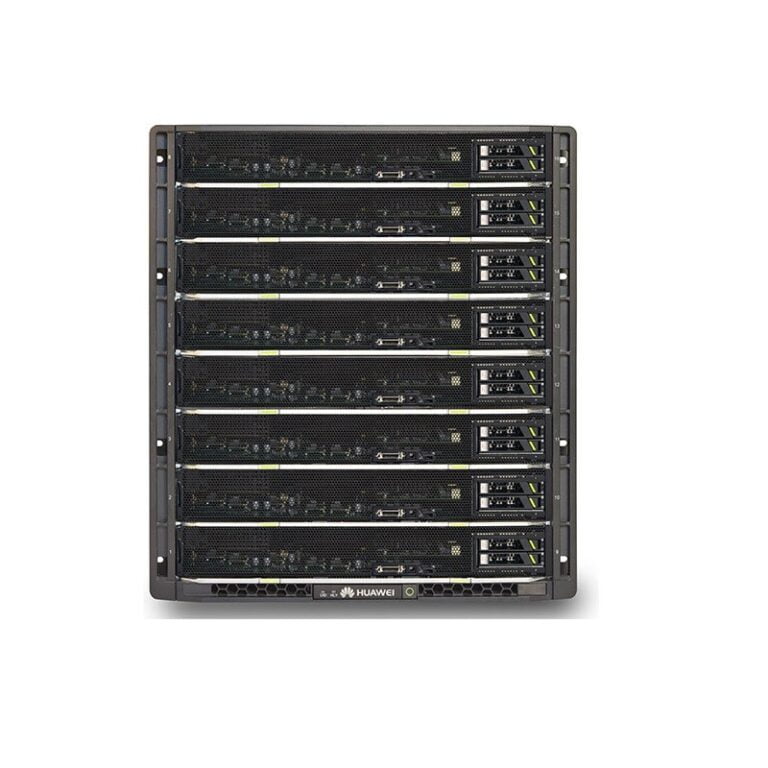

Huawei E9000 V1 Converged Infrastructure Blade Server
Uniwersalne serwery modułow
Opis produktu Huawei E9000 V1 Converged Infrastructure Blade Server
The FusionServer E9000 converged-architecture blade server enables convergence of computing, storage, networking, and management.
It provides a powerful platform for high-end carrier or enterprise applications, and is ideal for data centers, virtualization, mission-critical services, and high-performance computing.
Provides 16 slots in a 12U chassis that includes redundant Power Supply Units (PSUs), heat-dissipation modules, management modules, and switch modules.
The Huawei E9000 server can be installed in a standard 19-inch rack at a depth of at least 1m. It is available with AC or DC power setups to suit data center requirements.
- Supports a variety of services with 48 DIMMs and 15 x 2.5-inch hard disks, 6 x 3.5-inch hard disks, 12 x NVMe SSDs in a full-width slot along with 2- and 4-socket compute nodes and support for I/O acceleration using GPUs, PCIe SSDs, and GPUs for general-purpose computing (GPGPUs)
- Handles a variety of services, with modules including GE, 10 GE, 40 GE, FC, FCoE, and InfiniBand FDR with support for evolution to 100 GE and InfiniBand EDR
- Supports liquid cooling system, power saving > 40%, and PUE < 1.2
- Dynamic power-management functions and Platinum AC PSUs with higher than 95% power conversion efficiency minimize power consumption and heat dissipation
- A passive midplane helps prevent single-point failures, while support for fully redundant function modules enables seamless switchovers
Specyfikacja techniczna
| Form Factor | 12U |
| Blade | 16 half-width slots or 8 full-width slotsSupports flexible configurations of full-width and half-width nodes |
| Switch Modules | 4 slots for Huawei CX series switch modules provide a midplane switching capability of 15.6 Tbit/sCX110 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink
CX111 GE switch module: 12 x GE + 4 x 10 GE uplink, 32 x GE downlink CX116 GE pass-through module: 32 x GE uplink, 32 x GE downlink CX210 8G FC switch module: 8 x 8G FC uplink, 16 x 8G FC downlink CX220 16G FC Switch Module: 8 x 16G FC uplink, 16 x 16G FC downlink CX310 10 GE switch module: 16 x 10 GE uplink, 32 x 10 GE downlink CX311 10 GE/FCoE converged switch module: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE downlink CX317 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink CX318 10 GE pass through module: 32 x 10 GE uplink, 32 x 10 GE downlink CX611 InfiniBand switch module (QDR 40 Gbit/s, FDR 56 Gbit/s): 18 x QDR/FDR uplink, 16 x QDR/FDR downlink CX710 40 GE switch module: 8 x 40 GE uplink, 16 x 40 GE downlink CX912 multi-plane switch module; supports FC ports: 16 x 10 GE + 8 x 8G FC uplink, 32 x 10 GE + 16 x 8G FC downlink CX915 multi-plane switch module: 4 x 10 GE + 12 x GE + 8 x 8G FC uplink, 32 x GE + 16 x 8G FC downlink |
| PSU | AC/DC PSU: maximum six 3,000W/2,000W AC or six 2,500W DC hot-swappable PSUs in N+N or N+M redundancy mode |
| Fan Modules | Provides 14 hot-swappable fan modules in N+1 redundancy mode |
| Management |
|
| Power Supply | 110V/220V AC or –48V DC |
| OperatingTemperature | 5°C to 40°C |
| Dimensions | Height: 530 mm (20.87 in.)Width: 442 mm (17.40 in.)
Depth: 840 mm (33.07 in.) |
