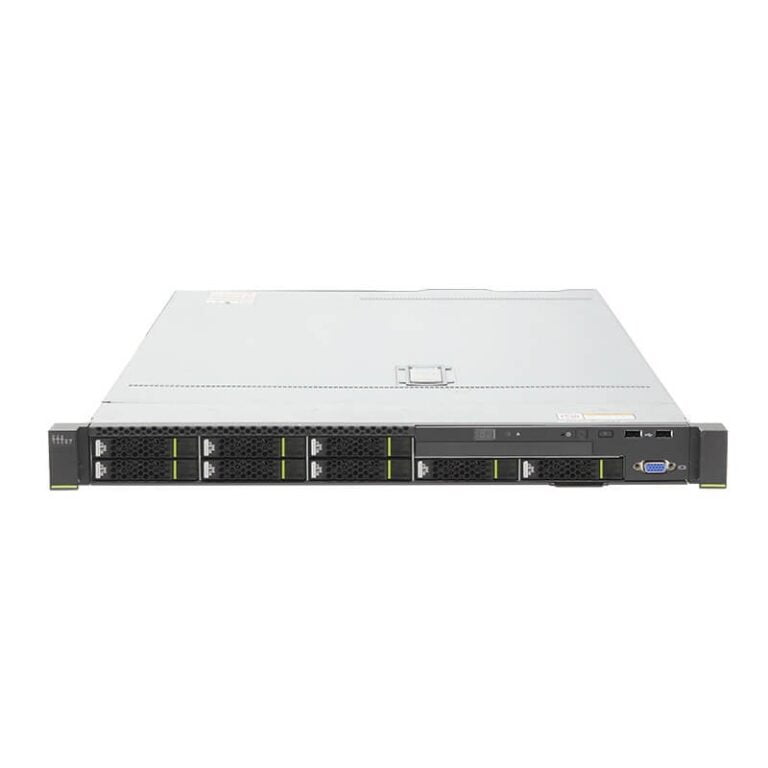

Huawei FusionServer RH1288 V3 Rack Server

Wysoko wydajny i energooszczędny serwer 1RU, dwuprocesorowy.

Huawei FusionServer RH1288 V3 Rack Server
Najedź kursorem, aby przybliżyć
Huawei FusionServer RH1288 V3 Rack Server
Opis
Specyfikacja techniczna
Do pobrania
Produkty powiązane

Opis produktu Huawei FusionServer RH1288 V3 Rack Server

Standard 1U, 2-socket rack server supports Intel® Xeon® E5-2600 v3/v4 series processors with up to 20 cores per single processor, achieving high performance for compute-intensive applications. Designed for cloud computing applications and enterprise applications requiring both computing and storage resources.

Maximum 1 TB memory capacity and 16 TB internal storage capacity strike an optimal balance between performance and density.

Rely on Huawei’s RH1288 V3 rack server to build a cost-effective, energy efficient, low-footprint, high-performance network and simplified management and maintenance.

  • High density: Two RH1288 V3 servers can be deployed in a 2U space, doubling the computing density of a conventional 2U rack server and saving up to 50% on space
  • Outstanding computing performance: Next-generation Intel® Xeon® E5-2600 v3/v4 series processors, with up to 20 cores per single processor, supports 16 x DIMMs, and 1 TB memory capacity, for memory-intensive applications
  • Flexible local network configuration: Provides two or four GE ports or two 10 GE ports or two 56G FDR IB ports without occupying any PCIe slots, improving network availability
  • Simplified O&M: Fault diagnosis LED on the front panel displays fault codes to indicate server faults; can be installed on guide rails or adjustable rails in a rack, facilitating deployment and maintenance

Specyfikacja techniczna

Processors Intel® Xeon® E5-2600 v3/v4 series processors
Memory 16 DDR4 RDIMMs/LRDIMMs
Internal Storage Hard disk configurations:

  • 8 x 2.5-inch SAS/SATA HDDs or SSDs (4 NVMe SSDs supported by the NVMe model)
  • 4 x 3.5-inch SAS/SATA HDDs

Built-in flash memory:

  • 2 mini-SSD cards (SATADOMs)
  • 2 SD cards
RAID
  • RAID 0, 1, 10, 5, 50, 6, or 60
  • Configured with a supercapacitor for power-off protection for the cache (optional)
  • RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration
LOM Network Ports 2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports
PCIe Expansion Up to 3 PCIe slots
Fan Modules 5 hot-swappable fan modules in N+1 redundancy mode
Power Supply Units 2 hot-swappable PSUs in 1+1 redundancy mode
Management
  • Uses Huawei Hi1710 management chip and independent ports
  • Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios
Operating Temperature 5ºC to 45ºC (41ºF to 113ºF), ASHRAE Class A3 and A4 compliant
