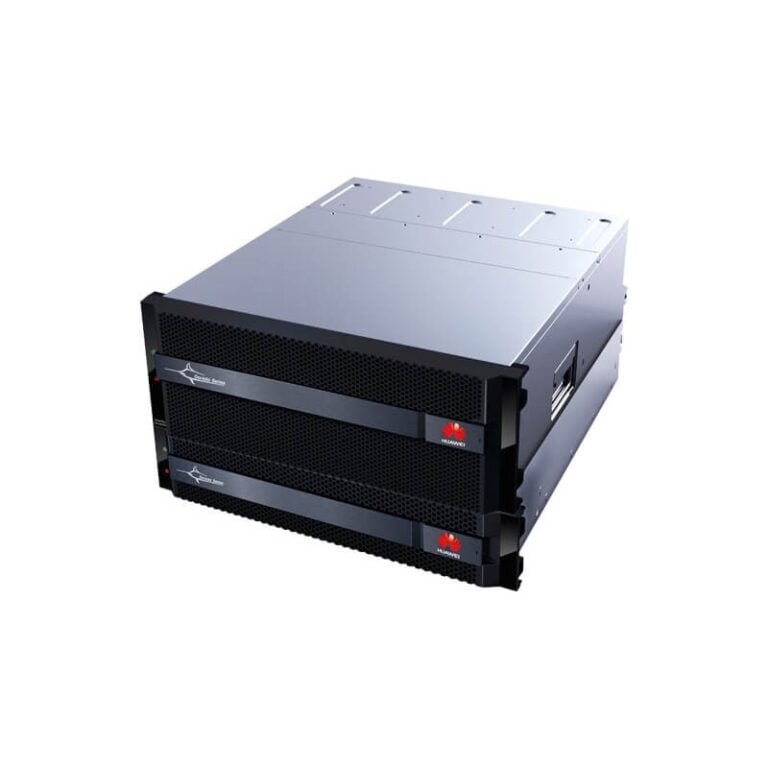

Huawei OceanStor Dorado2100 G2/5100
Ultra szybka macierz SSD dla krytycznych zastosowań. Osiągi do 600k IOPS!
Opis produktu Huawei OceanStor Dorado2100 G2/5100
- Brilliant performance: A dedicated flash architecture combined with advanced cache and I/O scheduling algorithms delivers 600,000 IOPSTM performance and micro-second latency, all designed to eliminate system performance bottlenecks
- Stable and reliable: An all-flash array comprehensively ensures overall high system reliability at disk, system, solution, and application levels
- Simple and easy to use: Employs standard SAN hardware, and can seamlessly integrate into a customer’s IT environment without any changes to existing applications
Delivers ultra-high performance using an all-flash array for applications involving large databases, Virtual Desktop Infrastructure (VDI), or high-performance computing.
This Dorado series delivers up to 600,000 SPC-1 IOPSTM performance with microsecond-level latency.
Designed with a dedicated flash architecture, advanced cache management, and I/O scheduling algorithms, Dorado2100 G2 and Dorado5100 easily boost system performance for your current and future business requirements.
Specyfikacja techniczna
| Model | OceanStor Dorado5000 V3 | OceanStor Dorado6000 V3 |
| Storage Processors | Multi-core processors | |
| Maximum Number of Controllers | 16* | |
| Maximum Cache Capacity per Dual Controller | 512 GB | 1 TB |
| Supported Storage Protocols | FC, iSCSI, InfiniBand, HTTP, and FTP | |
| Type of Front-end Ports | 8 Gbit/s, 16 Gbit/s FC, 10 GE iSCSI, and 56 Gbit/s InfiniBand | |
| Type of Back-end Ports | PCIe 3.0 (two ports 8 x 8 Gbit/s) | SAS3.0 (single port 4 x 12 Gbit/s) |
| Maximum Number of Front-end Ports per Dual Controller | 24 | 56 |
| Disk Type | 1 TB/2 TB/4 TB NVMe SSD | 600 GB/900 GB/1.8 TB/3.6 TB SAS SSD |
| Maximum Number of SSDs per Dual Controller | 25 | 100 |
| Maximum Raw Capacity per Dual Controller | 100 TB | 360 TB |
| Supported RAID Levels | RAID 5, RAID 6, and RAID-TP | |
| Maximum Number of Hosts | 8,192 | |
| Maximum Number of LUNs | 16,384 | |
| Value-added Features | SmartDedupe (intelligent inline de-duplication) SmartMigration (intelligent LUN migration)
SmartCompression (intelligent inline compression) HyperSnap (snapshot) SmartVirtualization (intelligent heterogeneous virtualization) HyperMetro (gateway-free active-active solution) SmartThin (intelligent thin provisioning) HyperReplication (remote replication) |
|
| Storage Management Software | DeviceManager (device management) eService (remote maintenance management)
UltraPath (multi-path management) BCManager (disaster recovery management) |
|
| Operating System Compatibility | AIX, HP-UX, Solaris, Linux, and Windows | |
| Supported Virtualization Environment Software | Huawei FusionSphere, VMware, XenServer, Hyper-V, and other virtualization platforms
VMware VAAI, VASA, SRM, and Hyper-V and other value-added features Integration with vSphere and vCenter |
|
*16 controllers will be available in the next version.
