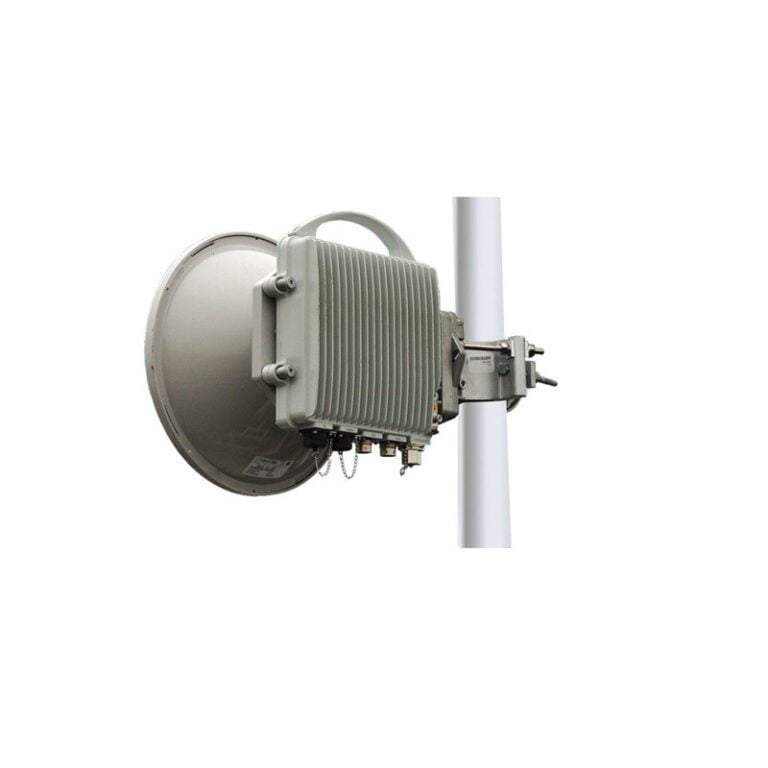

Huawei OptiX RTN 300 Microwave Transceivers
Zintegrowana platforma mikrofalowa dla pasma od 13GHz do 86GHz
Opis produktu Huawei OptiX RTN 300 Microwave Transceivers
- RTN 310 supports maximum bandwidth of 2 Gbit/s, License and SubLink bands for flexible network expansion
- RTN 380 supports maximum bandwidth of 4 Gbit/s and E band frequencies for short-distance, large-capacity backhaul communications
- For smaller capacity, RTN 360 supports a maximum bandwidth of 400 Mbit/s and V band, as well as easy, zero-footprint installation
- Reliable, worry-free operations — network-level, link-level, and equipment-level protections; meets IP65 standards for waterproofing and dustproofing; 8 kA surge protection
- Simple deployment and maintenance using a USB flash drive key to improve efficiency, and 360-degree automatic scanning to facilitate frequency selection
Highly integrated, outdoor microwave transmission equipment for building and extending high-availability broadband networks.
3 models to choose from to meet capacity, channel, and frequency band requirements (E band, V band, and below). OptiX RTN 300 Series transceivers are easy to install and maintain on poles, lamp posts, and walls, easy to maintain, and ruggedized for reliable operation over a broad range of temperatures; -30° to 130° F (-35° to 55° C) — and in harsh operating conditions.
Specyfikacja techniczna
| Specifications | RTN310 | RTN360 | RTN380 |
| Frequencies | 13/15/18/23/38 GHz | 59 GHz to 64 GHz | 71 GHz to 86 GHz |
| Channel Spaces | 7/14/28/56 MHz | 200 MHz | 62.5/125/250/500/750 MHz |
| Modulation | QPSK Strong to 2,048 QAM Light | 16 QAM | QPSK Strong to 64 QAM |
| Throughput | Maximum of 2 Gbit/s per carrier | 400 Mbit/s | Maximum of 4 Gbit/s per unit |
| Interfaces | GE | GE | GE, CPRI |
| USB Interface | Ok | Ok | Ok |
| Environment | Temperature: -35℃ to +55℃, Relative humidity: 5% to 100% | ||
| Power Supply | Supports power over Ethernet：–38.4V to –57.6V DC | ||
| Weight | 6 kg | 2.5 kg | 3.8 kg |
